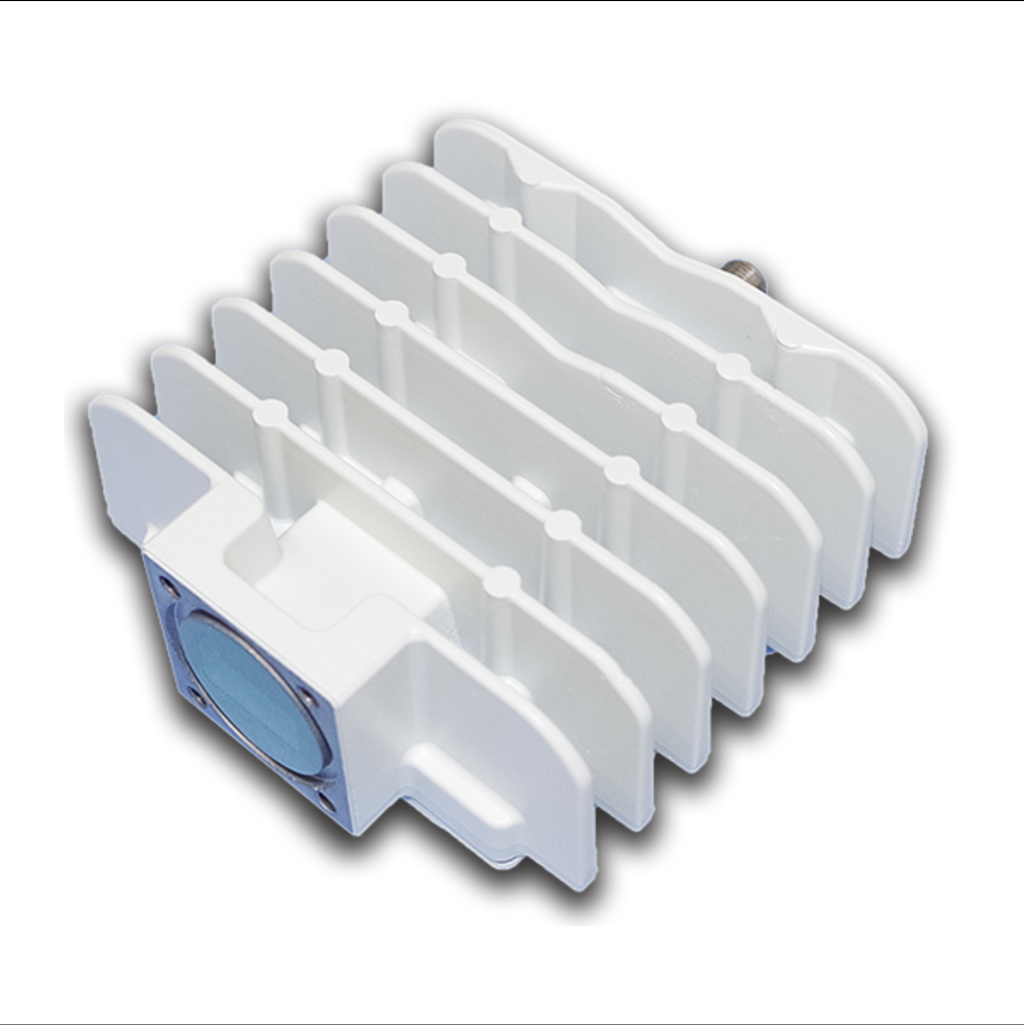

Nisshinbo NJR NJT8304U series Universal Ku-band 4W BUC
Quantity:
|
Model No. |
RF Frequency |
Output Power |
IF Connector |
|
NJT8304UN |
13.75 to 14.50 GHz |
4W |
N-Type |
|
NJT8304UF |
13.75 to 14.50 GHz |
4W |
F-Type |
Frequency Organization
RF Frequency: 13.75 to 14.5 GHz
IF Frequency: 950 to 1,700 MHz
LO Frequency: 12.8 GHz
High Efficiency & Low Distortion Output Power
P1dB: +36 dBm min. over temperature
ACPR: -26 dBc @ Pout = +35.5 dBm
Power Consumption: 28 W
Small Size & Light Weight
Weight: 500 g
Others
RoHS Compliance
