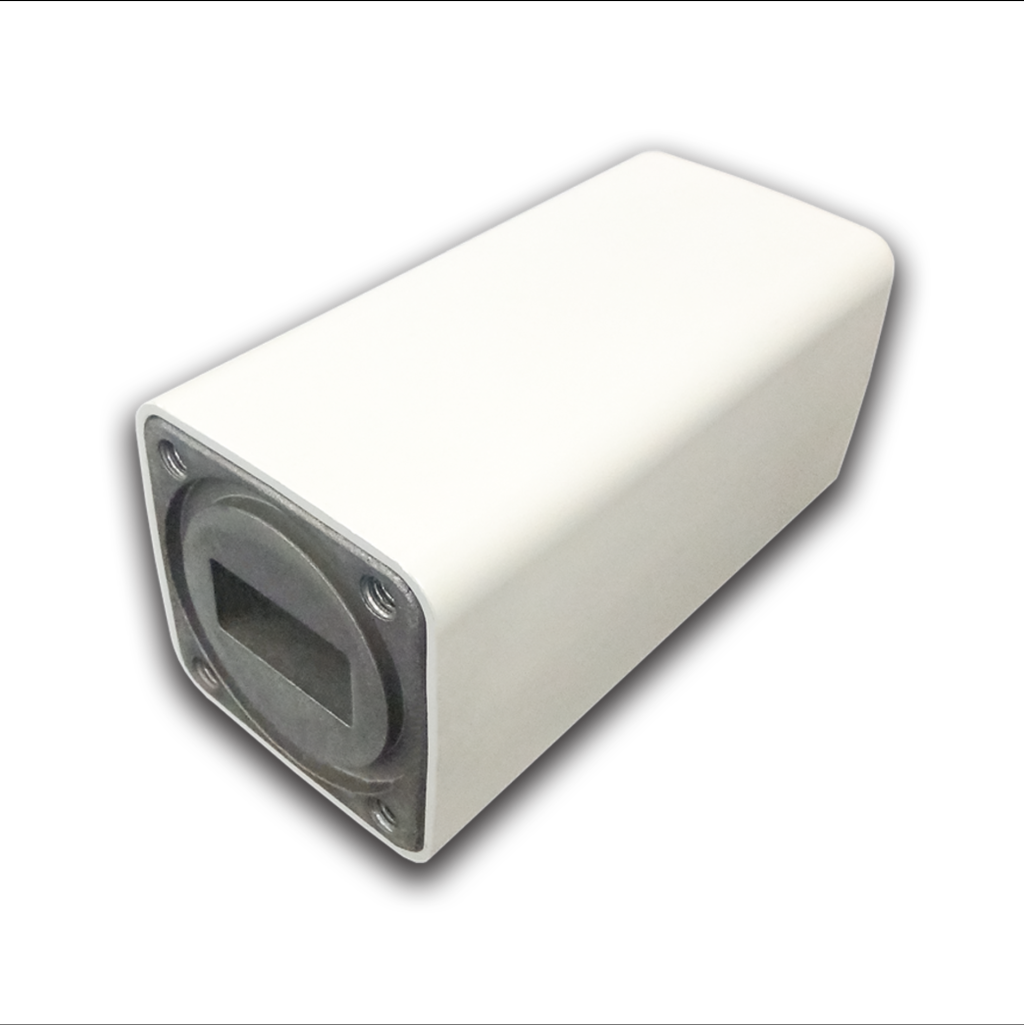

Nisshinbo NJR NJR2845G series Ku-band PLL LNB 12.2 to 12.75 GHz
Quantity:
|
Model No. |
RF Frequency |
Reference |
Stability |
IF Connector |
|
NJR2845GLF |
12.2 to 12.75 GHz |
Internal |
50ppm |
F-Type |
|
NJR2845GLN |
12.2 to 12.75 GHz |
Internal |
50ppm |
N-Type |
|
NJR2845GHF |
12.2 to 12.75 GHz |
Internal |
10ppm |
F-Type |
|
NJR2845GHN |
12.2 to 12.75 GHz |
Internal |
10ppm |
N-Type |
|
NJR2845GSF |
12.2 to 12.75 GHz |
Internal |
3ppm |
F-Type |
|
NJR2845GSN |
12.2 to 12.75 GHz |
Internal |
3ppm |
N-Type |
|
NJR2845GUF |
12.2 to 12.75 GHz |
Internal |
1ppm |
F-Type |
|
NJR2845GUN |
12.2 to 12.75 GHz |
Internal |
1ppm |
N-Type |
|
NJR2845GVF |
12.2 to 12.75 GHz |
Internal |
0.5ppm |
F-Type |
|
NJR2845GVN |
12.2 to 12.75 GHz |
Internal |
0.5ppm |
N-Type |
|
NJR2845GEF |
12.2 to 12.75 GHz |
External |
N/A |
F-Type |
|
NJR2845GEN |
12.2 to 12.75 GHz |
External |
N/A |
N-Type |
Frequency Organization
RF Frequency: 12.2 to 12.75 GHz
IF Frequency: 950 to 1,450 MHz
LO Frequency: 11.25 GHz
Low Noise Performance
Noise Figure (NF): 0.8 dB typ., 1.0 dB max.
LO Frequency Stability Line-up
L-type: +/- 50 ppm (+/- 500 kHz typ.)
H-type: +/- 10 ppm (+/- 100 kHz typ.)
S-type: +/- 3 ppm (+/- 30 kHz typ.)
U-type: +/- 1 ppm (+/- 10 kHz typ.)
V-type: +/- 0.5 ppm (+/- 5 kHz typ.)
E-type: External Ref.
Small Size & Light Weight
Weight: F-type 210 g / N-type 240 g
Others
RoHS Compliance
