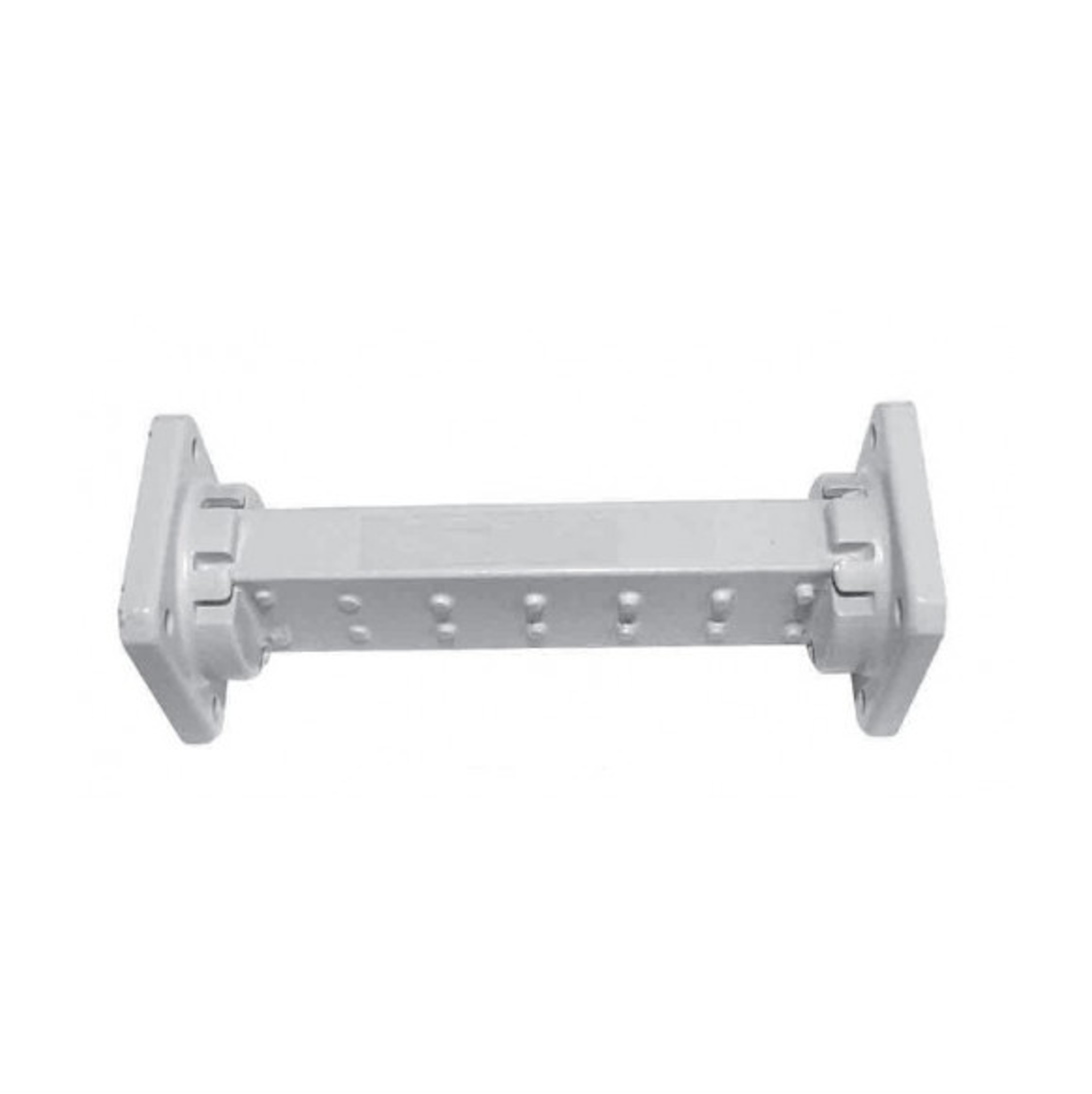

MFC 18397 Low Ku-Band Bandpass Filter 12.75-13.25GHz
Quantity:
Used for Ku-(mid) band transmit applications, this filter rejects the receive band and virtually all other undesired signals operating below the transmit band.
• Ideal for YAHSAT and other Ku-(mid)band Receive Applications
• Multi-Purpose Rejection – Eliminates the need for a separate RRF
Specifications:
|
Passband |
12.75 – 13.25 GHz |
|
Passband Loss |
0.18 dB Typ |
|
Rejection |
60dB Min from DC-12.25 GHz |
|
Flanges |
WR75 Grooved WR75 Cover |
