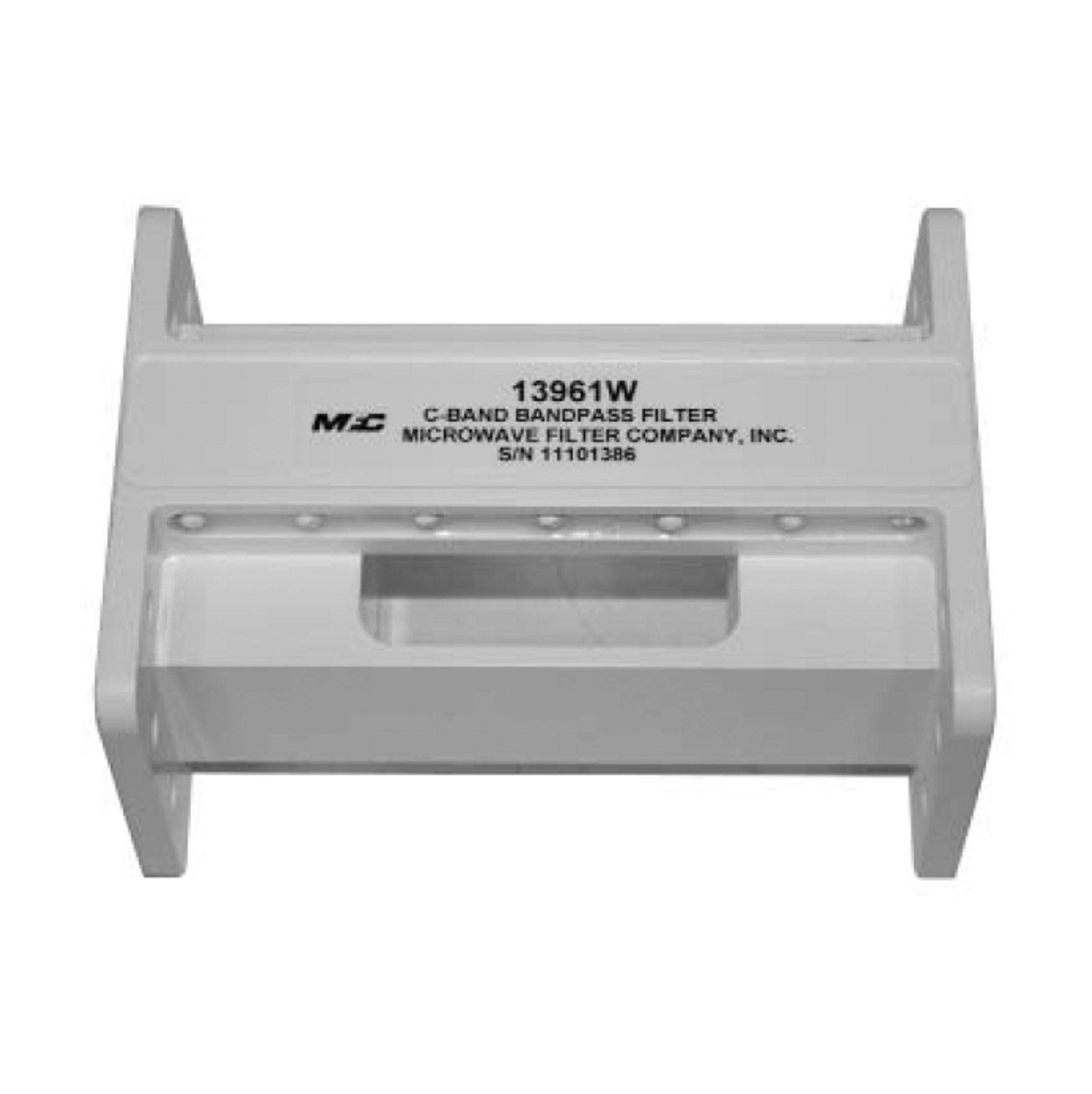

MFC 13961W 3400/4200 C-Band Interference Elimination Filter 3.4-4.2GHz
Quantity:
Utilizing a durable and true one piece body flange construction, the 13961W is shipped with hardware & gasketing and is ready to install between the feedhorn and the LNB/LNA.
Specifications:
|
Passband |
3.4-4.2 GHz |
|
Passband Loss |
0.3 dB Approx. @ center band 0.3 dB Approx. @ band edges |
|
Transmit Band Rejection |
> 70 dB Typ from 5.8-6.725 GHz |
|
Flanges |
CPR229G (Input) CPR229F (Output) |
Other Specifications:
|
Length |
Approx. 4.44” (11.28 cm) |
|
Weight |
Approx. 1.125 lb. (0.51 kg) |
|
Passband VSWR |
1.44:1 Typ; 1.5:1 Max. |
|
Group Delay Variation |
7nS Max. |
|
Rejection |
30 dB @ 3.30 GHz / 4.30 GHz 50 dB @ 4.40 GHz 60 dB @ 4.50 GHz |
