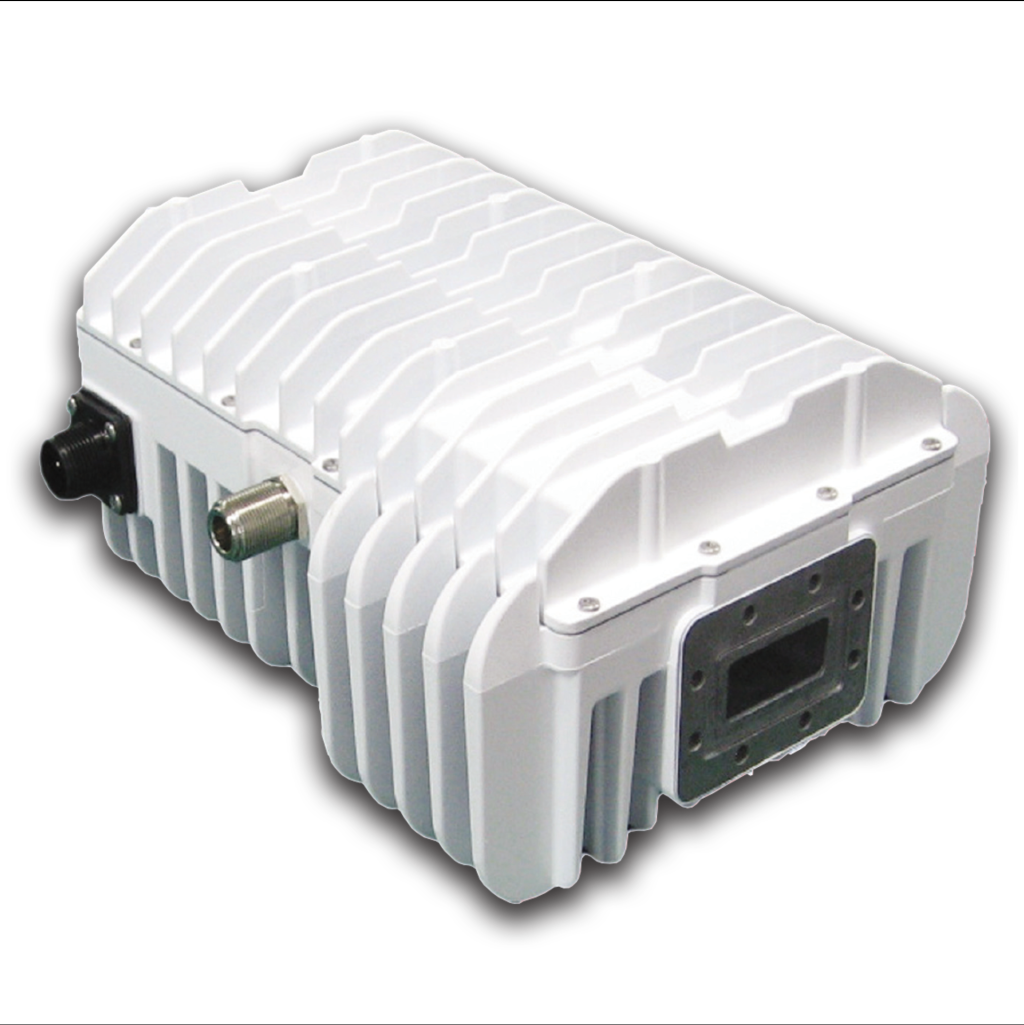

Nisshinbo NJR NJT5762U series Standard C-band 10W BUC
Quantity:
|
Model No. |
RF Frequency |
Output Power |
IF Connector |
Options |
|
NJT5762N |
5.85 to 6.425 GHz |
10W |
N-Type |
Power Supplied from IF Connector |
|
NJT5762F |
5.85 to 6.425 GHz |
10W |
F-Type |
Power Supplied from IF Connector |
|
NJT5762NM |
5.85 to 6.425 GHz |
10W |
N-Type |
Power Supplied from MS Connector |
|
NJT5762FM |
5.85 to 6.425 GHz |
10W |
F-Type |
Power Supplied from MS Connector |
|
NJT5762NA |
5.85 to 6.425 GHz |
10W |
N-Type |
Power Supplied from AC/DC PSU |
|
NJT5762FA |
5.85 to 6.425 GHz |
10W |
F-Type |
Power Supplied from AC/DC PSU |
Frequency Organization
RF Frequency: 5.85 to 6.425 GHz
IF Frequency: 950 to 1,525 MHz
LO Frequency: 4.9 GHz
High Efficiency & Low Distortion Output Power
P1dB: +40 dBm min. over temperature
IM3: -28 dBc @ Pout = +37 dBm
Power Consumption: 69 W
M&C Option
FSK Communications M&C Equipped
Power Requirement Line-up
DC Power Voltage Range: +18 to +60 VDC
AC Power Option
Small Size & Light Weight
Weight: 3.2 kg
Others
LED Indicator Equipped
RoHS Compliance
