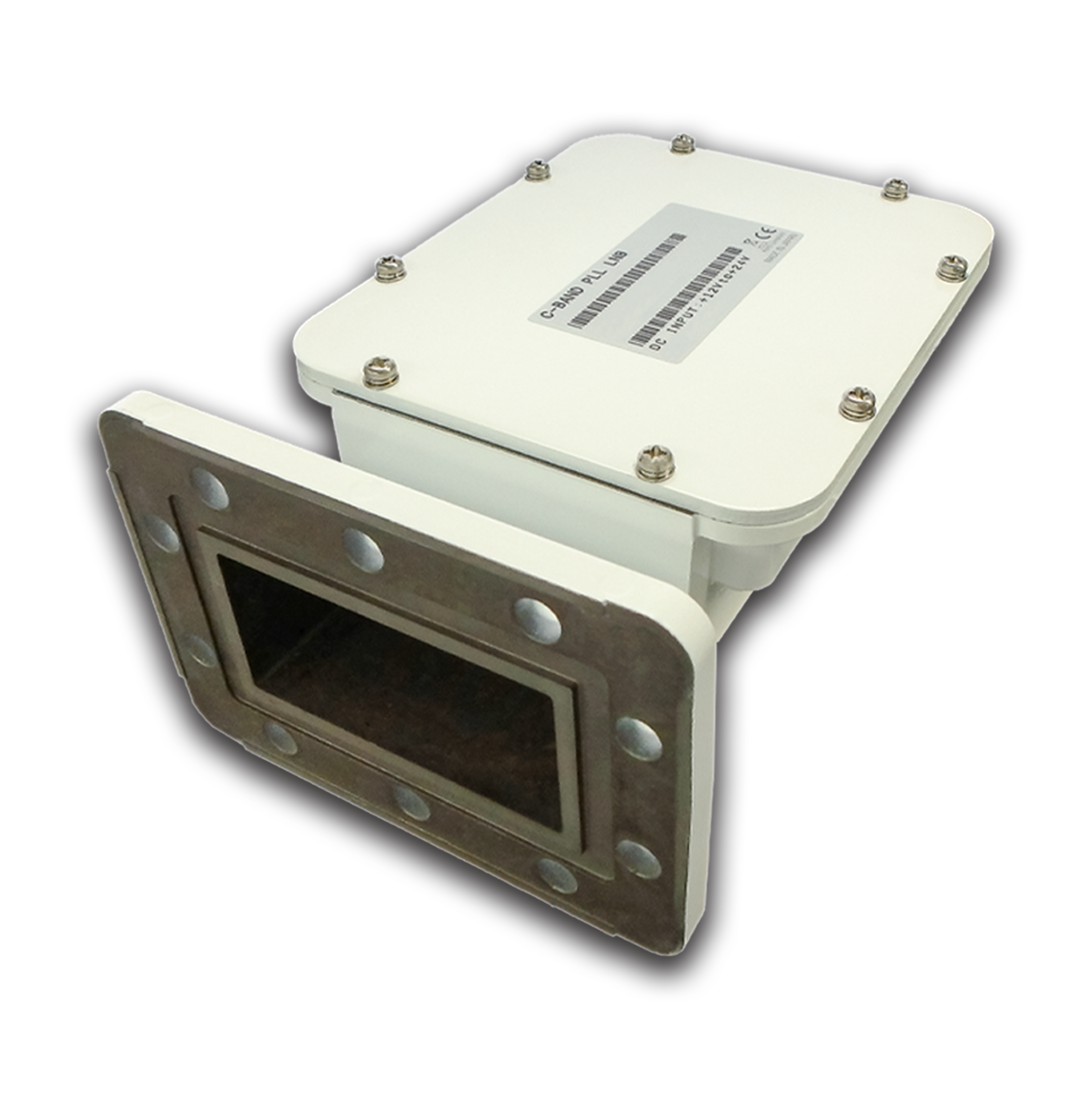

Nisshinbo NJR NJS8498 series Insat C-band PLL LNB 4.5 to 4.8 GHz
Quantity:
|
Model No. |
RF Frequency |
Reference |
Stability |
IF Connector |
|
NJS8498HF |
4.5 to 4.8 GHz |
Internal |
10ppm |
F-Type |
|
NJS8498HN |
4.5 to 4.8 GHz |
Internal |
10ppm |
N-Type |
|
NJS8498SF |
4.5 to 4.8 GHz |
Internal |
3ppm |
F-Type |
|
NJS8498SN |
4.5 to 4.8 GHz |
Internal |
3ppm |
N-Type |
|
NJS8498UF |
4.5 to 4.8 GHz |
Internal |
1ppm |
F-Type |
|
NJS8498UN |
4.5 to 4.8 GHz |
Internal |
1ppm |
N-Type |
|
NJS8498VF |
4.5 to 4.8 GHz |
Internal |
0.3ppm |
F-Type |
|
NJS8498VN |
4.5 to 4.8 GHz |
Internal |
0.3ppm |
N-Type |
|
NJS8498EF |
4.5 to 4.8 GHz |
External |
N/A |
F-Type |
|
NJS8498EN |
4.5 to 4.8 GHz |
External |
N/A |
N-Type |
Frequency Organization
RF Frequency: 4.5 to 4.8 GHz
IF Frequency: 960 to 1,260 MHz
LO Frequency: 5.76 GHz
Low Noise Performance
Noise Temperature (NT): 15 K typ.
LO Frequency Stability Line-up
H-type: +/- 10 ppm (+/- 50 kHz typ.)
S-type: +/- 3 ppm (+/- 15 kHz typ.)
U-type: +/- 1 ppm (+/- 5 kHz typ.)
V-type: +/- 0.3 ppm (+/- 1.5 kHz typ.)
E-type: External reference
Small Size & Light Weight
Weight: 670 g
Others
RoHS Compliance
